Product Details:
Payment & Shipping Terms:
|
| Product Name: | Fence Mesh Welding Machine | Width Of Mesh: | Max 2500mm |
|---|---|---|---|
| Mesh Size: | 50*50--300*300mm | Wire Diameter: | 2.0--6.0mm |
| Welding Speed: | 50--75 Times Per Min | Color: | Green Blue According To Your Requirement |
| High Light: | fencing wire making machine,mesh panel welding machine |
||

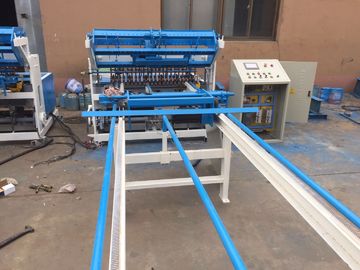

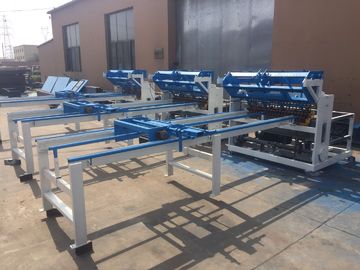

2--6mm Automatic Fence Mesh Panel Welding Machine With High Quality
Product description;
The fence mesh panel welding machine adopts CNC synchronous control technique, welding time and separate welding time are composed of PLC programming system for digital. input panel touch screen or keyboard operating, more intelligent and reasonable. Fence Welding Machine once pressed, graded welding, the greatest advantage of this control is in the same mesh panel, 30 different mesh sizes, different weft spacing and warp spacing. Welding device using new and efficient water-cooled welding transformer, expanding the scope of the welding wire diameter. Easy to operate, high flexibility, several times production of artificial single spot welding machine.
Technical Parameters
| Model | MLG-FP-2500A | Wire diameter | 2.5-6mm/3-5mm |
| Line wire space | 50-300mm | Cross wire space | 25/12.5mm-300mm |
| Width of mesh | Max.2.5m | Length of mesh | Max.6m |
| Welding electrodes | 48pcs | Welding speed | 50-75 times/min |
| Rated electrical power | 160kva*6pcs | Needed power | Min.160kva |
| Weight | 4.2T | Overall size | 5.4m*3.2*1.7m |
After-sales service
1. Guarantee time: 1 year since machine was installed at your factory but within 18 months against B/L date.
2. Within guarantee time, if any components are broken under normal condition, we can change for free.
3. We can send our best technician to buyer’s factory for installation, debugging and training.
4. Complete installation instructions, circuit diagram, manual operations and machine layout.
5. Timely reply for your machine questions.
