| Capacity: | 150m Per Hour | Width: | Max 2400mm |
|---|---|---|---|
| Voltage: | 220V 380V 440V | Side Wire Diameter: | 2.0--3.5mm |
| Twine Wire Diameter: | 1.9--2.5mm | Name: | Farm Fencing Equipment |
| High Light: | cattle fence machine,field fence machine |
||

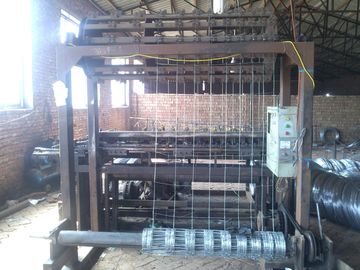

Hinge Joint Knot Weaving Field Fence Machine / Cattle Fence Machine
(1) Introduction of Full Automatic 96inch Height Fixed knot fence machine
Field fence (fixed knot) machine is used to weave wrap-around fence. It can weave the diameter wire and weft wire together automatically. It is developed after many years our company has independent intellectual property rights, self-made. It uses sophisticated computer control, advanced production technology. With novelty, high degree of automation, operational safety and reliability, easy operation, long life and low prices. Product neat and beautiful, diverse specifications.
(2) Parameters of Full Automatic 96inch Height Fixed knot fence machine
| Type | 1422mm | 1880mm | 2000mm | 2400mm |
| motor | 5.5k | 7.5kw | 7.5kw | 11kw |
| Dimension | 2.8*3.2*2.4(m) | 3.3*3.2*2.4(m) | 3.4*3.2*2.4(m) | 3.9*3.4*2.4(m) |
| Efficiency | 45row/min | ≤45row/min | ≤45row/min | ≤45row/min |
| Twine wire diameter | 1.9-2.5(mm) | 1.9-2.5(mm) | 1.9-2.5(mm) | 1.9-2.5(mm) |
| Side wire diameter | 2.0-3.5(mm) | 2.0-3.5(mm) | 2.0-3.5(mm) | 2.0-3.5(mm) |
| Voltage | 380v | 380v | 380v | 380v |
| Weight | 3.5T | 3.8T | 4.0T | 4.5T |
| Wrap number | 11 | 13 | 18 | 23 |
| Minimum weft opening number | 2 | 4 | 4 | 6 |
| Weft number | 10 | 12 | 17 | 22 |
| Productivity | 21600row/day (150m/h) | |||
