Feeding Of Longitudinal Wire: | Pre-cut. Put The Hopper Of Cross Wire | Feeding Of Cross Wire: | Pre-cut |
---|---|---|---|
Wire Diameter: | 3--6mm | Width Of Mesh: | Max 3000mm |
Mesh Size: | 50x50mm--200x200mm | Length Of Mesh: | Max 3000mm |
Highlight: | fence panel making machine,mesh panel welding machine |

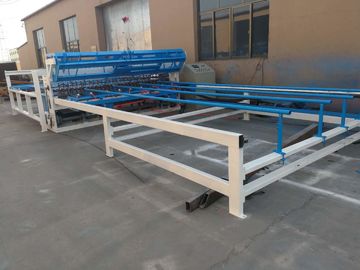

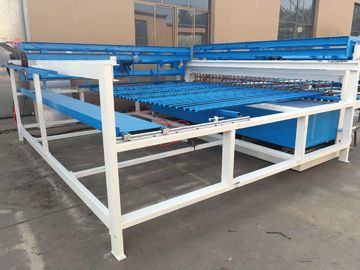

Latest Technology Fence Wire Mesh Panel Welding Machine For Wire diameter 3--6mm
Product description:
1. This is our latest technology fence wire mesh panel welding machine.
2. This fence wire mesh panel welding machine adopts synchronous control technique. The center-control and welding time are composed of Mitsubishi PLC program system. The input front-panel has two forms, touch screen and keyboard that makes the machine more intelligent and reasonable and it could press at one time, times welding.
2. The fence wire mesh panel welding machine stops automatically if cross wires are used up in the hopper.
3. Adjustable longitude wire space and cross wire space.The line wire and the weft wire are pre-straight and pre-cut. The greatest advantage is that you can adjust the distance of weft wire at random on the same one piece wire mesh sheet.
4. Mesh pulling system is controlled by servo-motor(Panasonic brand)
5. Wire feeding way:The line wires first pre-cut by wire straightening cutting machine. Then put the wire into the hopper. The hopper will falling wire automatically when the machine is working, and cross wires should be pre-straightened and pre-cut, then be put by manual work.
6. Material:Suitable for low carbon iron wire, ribbed wire, cold drawn wire,or galvanized (cold galvanized, hot galvanized) processing.
Technical parameter:
Wire diameter | 3.0--6.0mm | Line wire form | Pre-cut wire |
Line wire distance | 50--200mm(adjustable) | Weft wire form | Pre-cut wire |
Cross wire distance | 50--200mm(adjustable) | Rated voltage | 220V 380V 415V 440V |
Welding net width | Max 3000mm | Rated power | 160KVAx4PCS |
Welding speed | 45--60 times/min | Panel mesh Length | Max 6m |
Welding spots | 31 | Dimension | 9.5m*2.7m*1.6m |
Machine weight | 5.4T | Motor power | 5.5 KW |
Application;
The finished product Fence wire mesh panel is more used in construction engineering, which mainly ACTS as the wall reinforcement against chapping and thermal insulation.Used in construction, coal mine, highway, municipal, community, agriculture, etc.
