Product Details:
Payment & Shipping Terms:
|
| Line Wire Type: | From Coil Wire | Cross Wire Type: | Pre-cut |
|---|---|---|---|
| Motor: | 4.0KW | Pulling Mesh System: | By Servo Motor |
| Wire Diameter: | 2.5--5.5mm | Width Of Mesh Panel: | 1500mm |
| High Light: | chicken mesh making machine,automatic wire mesh machine |
||

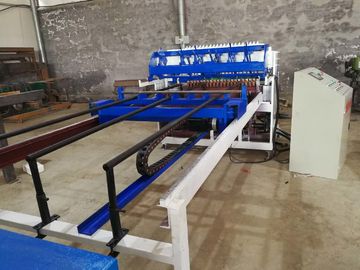

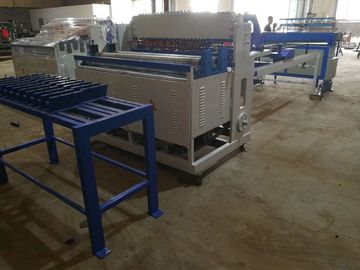

Line Wire From Coil Welded Mesh Panel Welding Equipment For Mesh Size 50x50mm
Product description;
1. Feeding system
weft feeding method:automatically straightening cutting machine straighten and cut steel well before welded into wefts blanking systems, welfs falling automatically in welding process
warp feeding method:coil wire were put on the respective position,inserting one side of the coil wire into through-hole solder wire mesh machine,then the entire welding process is automatically feeding.
2. Welding system
The welding machine adopts synchronous control technique both welding time and cent-control welding are used in Japanese panasonic digital control system. Inputting on the touch screen control panel directly can adjust the mesh size,and also can weld different size of mesh on the same wire mesh sheet between weft and weft.
3.Pulling mesh system
Japan panasonic servo motor control whole automatic hauling wire mesh system
4. Automatic wire mesh cutting system
In advance,according requirement sets the length of mesh sheet by cutting machine,afterautomatically cut mesh operating.
Technical parameter;
| Technical items | parameters MLG-WHJ-1500 | wire diameter | 2.5-5.5mm |
| Cross wire space | 50-200mm | Line wire space | 50-200mm |
| Number of electrodes | 24 | Max mesh width | 1500 mm |
| Electricity capacity | 3*125kva | Welding speed | 40-60times/min |
| Weight | 2.5T | Overall dimension | 1900*2300*1400mm |
| Cross wire form | pre-cut wire | Line wire form | coil wire |
