| Pulling Mesh: | By Mechanical Draw Bar | Wire Diameter: | 2.5--5.0mm |
|---|---|---|---|
| Motor: | 4KW | Capacity: | 270--300 M Per Hour |
| Mesh Opening: | 100x100mm--300x300mm | Length Of Mesh: | 50 M In Roll |
| High Light: | wire mesh roll welding machine,steel wire mesh machine |
||

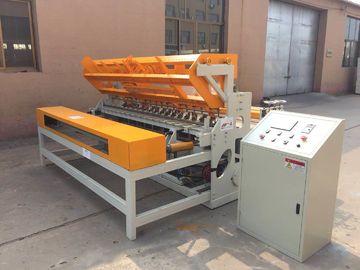

Mesh Size 100x100 mm Roll Mesh Welding Machine Wire Diameter 2.5--5mm
Product description
1.The control system adopts synchronous CNC technology, Panasonic PLC program and HMI. It is easy and convenient to operate with the touching screen.
2. The fallen wire system controlled by stepping motor instead of putting wefts wires by manual work, increasing productivity.
3. Adjustable distance of line wire that allows different opening size between the line wire, when input the distance of cross wire to computer, any character can be reach. Welding aperture can adjust randomly within range.
4. The length of mesh can be adjustable in the control cabinet. Such as you need produce length of mesh 50m in roll. mesh size 10*10cm. So input quantity of mesh opening 50 into the control cabinet by touch screen.The machine will produce length of mesh 50m in roll.
5. The mesh pulling is by draw bar to pull the mesh.

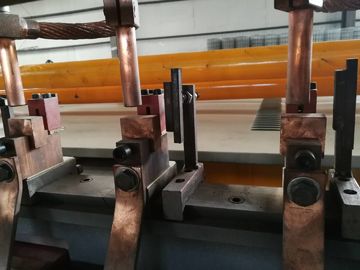

6, Transformer:160KVA*3(24 welding heads) ——every 8 welding heads need a water cooling transformer.
7, Wire feeding way:The line wires from coil wire. and cross wires should be pre-straightened and pre-cut, then be put by manual work.
8, Material:Suitable for low carbon iron wire, black annealed wire GI wire.
Technical details
| Wire diameter | 2.5--5.0mm | Line wire form | From coil |
| Line wire distance | 100--300mm | Weft wire form | Pre-cut wire |
| Cross wire distance | 100--300mm | Rated voltage | 380V 50HZ |
| Welding mesh width | Max 2500mm | Transformer power | 3PCSX160KVA |
| Welding speed | 45--60 times/min | Length of mesh | 50m in roll |
| Welding spots | 24 | Dimension | 6m*3.2m*1.7m |
| Machine weight | 4.6T | Motor power | 4.0KW |
| Capacity | 270--300m per hour | Dimension of workshop | 20m*5m*4m |
Application
Mainly used for general building exterior wall. grassland fence. building construction. workshop building.
