Mesh Size 80 * 100 mm Automatic Gabion Making Machine For Foundation Pit Supporting

Mesh Size 80 * 100 mm Automatic Gabion Making Machine For Foundation Pit Supporting

Mesh Size 80 * 100 mm Automatic Gabion Making Machine For Foundation Pit Supporting
Mesh Size 80 * 100 mm Automatic Gabion Making Machine For Foundation Pit Supporting Mesh Size 80 * 100 mm Automatic Gabion Making Machine For Foundation Pit Supporting Mesh Size 80 * 100 mm Automatic Gabion Making Machine For Foundation Pit Supporting

Large Image :  Mesh Size 80 * 100 mm Automatic Gabion Making Machine For Foundation Pit Supporting Get Best Price

Product Details:

Place of Origin: Hebei China
Brand Name: MLG
Certification: CE
Model Number: MLG-3400

Payment & Shipping Terms:

Minimum Order Quantity: One set
Packaging Details: The main machine is mainly covered by thick plastic film; Packing and marking of the Goods should provide safety of the goods during its transportation to the place of destination. We will provide such packing of the goods which is customary required to
Delivery Time: 35 days after receiving deposit or L/C.
Payment Terms: D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability: 4--5 sets per month
Detailed Product Description
Name: Wire Mesh Weaving Machine Width Of Mesh: 500---4500mm
Mesh Size: 60*80mm 80*100mm 100*120mm 120*150mm Weight: 13.5T--15.5T
Application: Used To Make Heavy Duty Gabion Mesh Color: Green
High Light:

gabion wire mesh machine

,

gabion box machine

Mesh Size 80*100mm Automatic Gabion Mesh Machine For Seawall Entrench


Detailed Product Description:

The series gabion mesh machines have been designed to make gabion mesh of various widths and mesh sizes. The possible coatings are heavily galvanized and zinc. For high corrosion resistance, zinc and PVC, galfan coated wire is available.We can manufacture gabion machine according to customer's request.


Advantages:


1. New type double rack drive gabion knitting machine

2. High efficiency: theoretic output=4.25m/min

3. PLC control system touch screen(Option)

4. Infrared ray safety(Option)

5. Automatic stop system (Option)

6. Automatic oil system

7. The knitting machine is satisfied with normal wire netting machine's requipment, and also can meet weaving large diameter hexagonal mesh's demand.

8. The design is innovation in China, it can weave the wire 4.0mm easily and speed as normal wire diameter.



Technical parameter:



Product specification
(mm)
Largest width of shell fabric
(mm)
Largest wire diameter
(mm)
Motor power
(kw)
Weaving speed
(m/hour)
Boundary dimension
(mm)
Weight
(T)
60*80 2400 3.5 15 165 5200*1400*2400 13.5
3300 3.5 18 6200*1400*2400 15
4500 4 30 7200*1400*2400 15.5
80*100 2400 3.5 15 200 5200*1400*2400 13.5
3300 3.5 18 6200*1400*2400 15
4500 4 30 7200*1400*2400 15.5
100*120 2400 3.5 15 220 5200*1400*2400 13.5
3300 3.5 18 6200*1400*2400 15
4500 4 30 7200*1400*2400 15.5
120*150 2400 3.5 15 230 5200*1400*2400 13.5
3300 3.5 18 6200*1400*2400 15
4500 4 30 7200*1400*2400 15.5
                Note: Special specifications can be made according to requirement of clients.

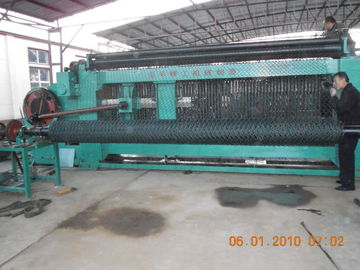

Mesh Size 80 * 100 mm Automatic Gabion Making Machine For Foundation Pit Supporting 0

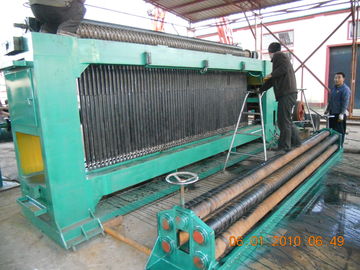

Mesh Size 80 * 100 mm Automatic Gabion Making Machine For Foundation Pit Supporting 1



Accessories:



1 Spring making machine

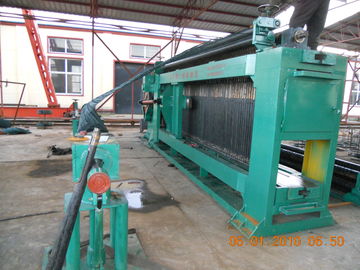

Mesh Size 80 * 100 mm Automatic Gabion Making Machine For Foundation Pit Supporting 2



2 Warping machine



Mesh Size 80 * 100 mm Automatic Gabion Making Machine For Foundation Pit Supporting 3



3 Collecting roll machine



Mesh Size 80 * 100 mm Automatic Gabion Making Machine For Foundation Pit Supporting 4
