Product Details:
Payment & Shipping Terms:
|
| Name: | Wire Net Making Machine | Cross Wire Type: | Pre-cut |
|---|---|---|---|
| Welding Speed: | 45--60 Times Per Min | Power Consumption: | 8--10KVA Per Hour |
| Motor: | 4KW | Weight: | 4.8T |
| High Light: | wire mesh making machine,chicken mesh making machine |
||

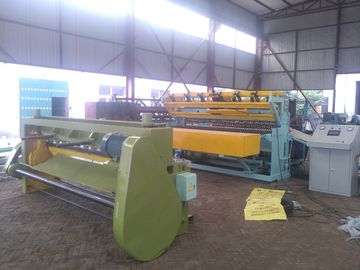

Width of Mesh 2.5m Roll Wire Mesh Welding Equipment
Features
1. This roll wire mesh welding equipment is professionally used to produce constuction roll mesh and plate mesh, controlled by the special computer, the welding current and welding time in each welding transformer can be individually adjusted. The machine operating interface is made up with color touch screen and control buttons, easy to operate.
2. Host framework structure, stable performance, the welding pressure is continuously adjustable, solid and perfect welding spot.
3. Integrated deceleration electromagnetic brake motors for power, inverter control, adjustable speed.

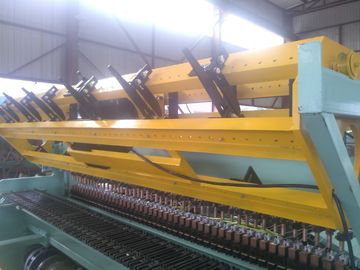

4. Modular design for the upper and lower electrodes, convenient to adjust the mesh.
5. weft-hopper obtains wires by motor driver devices and so weft wires feed automatically.
6. The line wire feeding is coil,the roll wire mesh welding equipment adapts the specail line wire straighters device,which can ensure the line wires straightenend automatically from the pay-offs.
7. Material is suitable for low carbon wire, galvanized wire and so on.
Main parameters
| Item |
WHJ1200 (2.0-5.0mm) |
WHJ1600 (3.0-6.0mm) |
WHJ2100 (3.0-6.0mm) |
WHJ2500 (3.0-6.0mm) |
| Number of Electrodes | 24 | 32 | 40 | 48 |
| Max Mesh Width | 1200mm | 1600mm | 2100mm | 2500mm |
| Wire Diameter | 2.0-5.0mm | 3.0-6.0mm | 3.0-6.0mm | 3.0-6.0mm |
| Cross Wire Space | 50-200mm | 50-200mm | 50-200mm | 50-200mm |
| Line Wire Space | 50-200mm | 50-200mm | 50-200mm | 50-200mm |
| Cross Wire Feeding | Pre-cut | Pre-cut | Pre-cut | Pre-cut |
| Line Wire Feeding | Coil | Coil | Coil | Coil |
| Rated Power | 100KWA*4 | 100KWA*5 | 100KWA*6 | 100KWA*8 |
| Welding Speed | 40-60times/min | 40-60times/min | 40-60times/min | 40-60times/min |
| Control System | PLC or SCM | PLC or SCM | PLC or SCM | PLC or SCM |
| Including Auxiliary |
wire straightening and cutting machine,,cutting mesh machine,rolling mesh machine,line wire straightening device,pay-offs |
|||
Applications;
The finished product is widely used in The steel mesh is used for pavement, Bridges, airports, gardens, public places, squares, highways, railways, highways, factories and other isolates.
