| Model: | CS-B | Main Wire Diameter: | 2.0--3.0mm |
|---|---|---|---|
| Barb Wire Diameter: | 1.8--2.2mm | Barb Wire Spacing: | 3inches 4inches 5inches 6inches |
| Capacity: | 90KG/hour | Name: | Razor Barbed Wire Machine |
| High Light: | barbed wire making machine,barbed wire manufacturing machine |
||

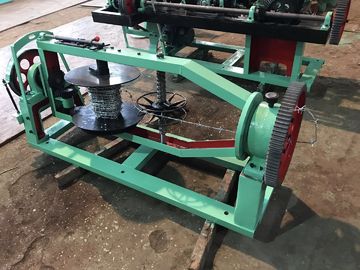

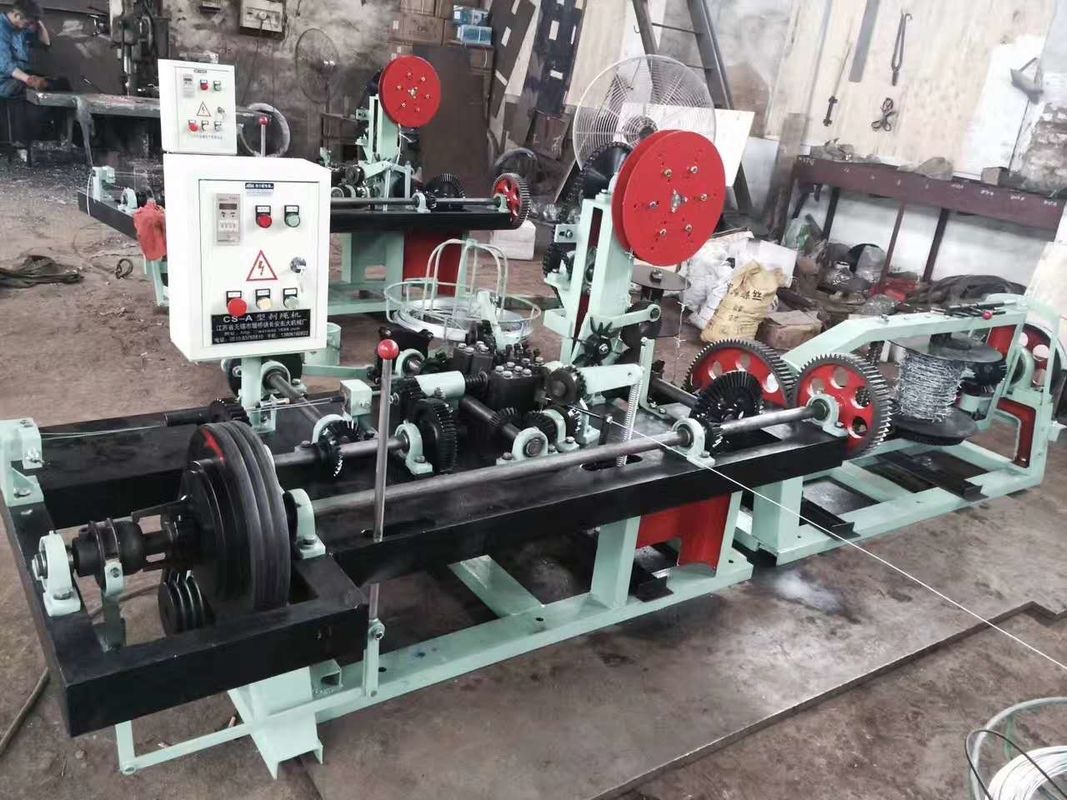

Normal Double Twisted Barbed Wire Making Machine For Defence
This machine can produce barbed wire which is widely used in national defense, military, railway, highway, agricultural, animal husbandry and other industries. The materials of barbed wire usually hot dipped galvanized wire, electric galvanized wire and PVC coated wire etc.
Raw material
It consists of hot dipped galvanized wire, electric galvanized wire and PVC coated wire etc.
Applications:
It is widely used in national defense, railway, highway, agriculture, animal husbandry and other industries.
Technical parameter
| Model | CS-B Type |
| Motor power | 2.2kw |
| Main drive shaft speed | 402r/min |
| Wire diameter | 2.0-3.0mm |
| Barbed wire diameter | 1.8mm-2.2mm |
| Barbed space | 76mm(3’)/102mm(4’)/127mmm(5’) 153mm(6") |
| Twisted number | 2-5 |
| Theoretical production | 90kg/h |
| Total weight | 1000kg |
| Main part size | 1950mm*950mm*1300mm |
| Take-twisting part size | 1760mm*550mm*760mm |
Finished product
