Product Details:
Payment & Shipping Terms:
|
| Wire Diameter: | 3--6mm | Width Of Mesh Panel: | Max 3000mm |
|---|---|---|---|
| Mesh Opening: | 50x50mm--200x200mm | Length Of Mesh: | 3m |
| Welding Transformer: | 160KVA*7pcs | Motor: | 5.5KW |
| High Light: | fence panel making machine,mesh panel welding machine |
||

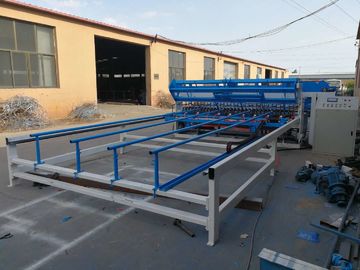

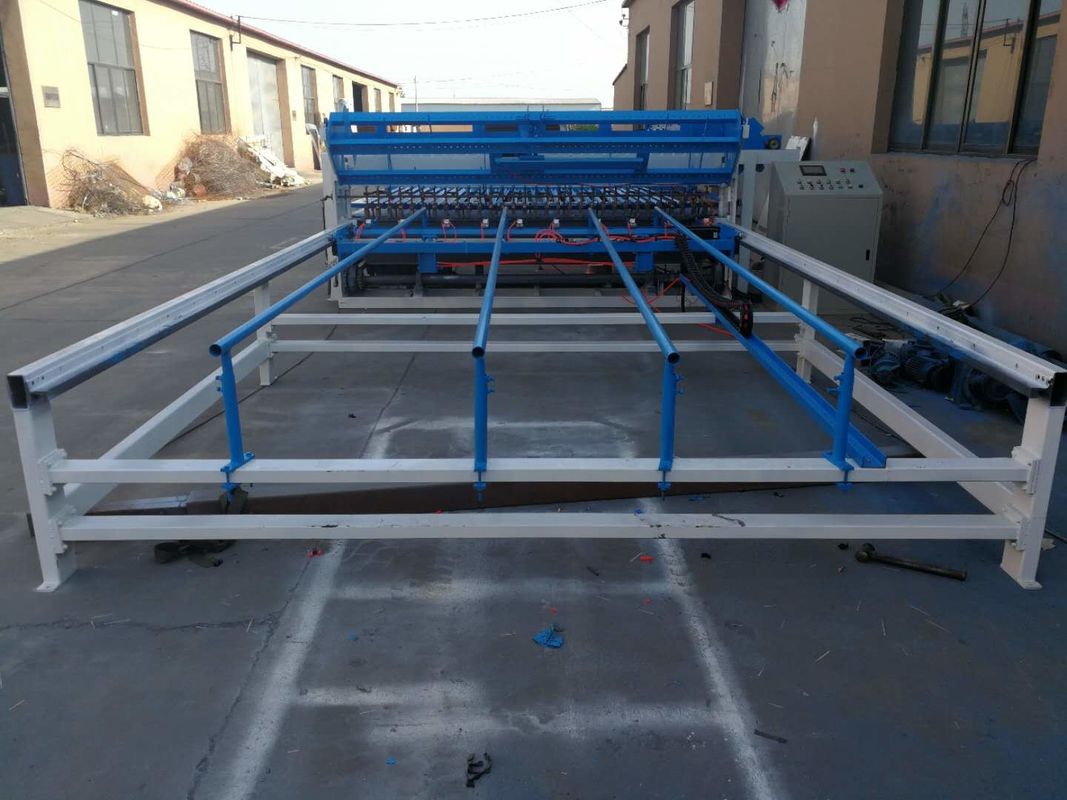

Panasonic PLC Welded Mesh Welding Machine For Airport Fence Protection
Product description
1. This welded mesh welding machine adopts center-control and welding time are composed of Mitsubishi PLC program system. The input front-panel has two forms, touch screen and keyboard that makes the machine more intelligent and reasonable and it could press at one time, times welding.
2. welding by electromotor; the hopper adopts the step motor; brake motor wheels; pulling the wire mesh is controlled by the servo motor.
3, The line wire and the weft wire are pre-straight and pre-cut. The greatest advantage is that you can adjust the distance of weft wire at random on the same one piece wire mesh sheet.
4. Mesh pulling system is controlled by servo-motor that adopts elastic tension and opening positioning mesh, which improves the precision of mesh opening size.
5. Wire feeding way:The line wires and cross wires should be pre-straightened and pre-cut, then be put by manual work
6. Material:Suitable for low carbon iron wire, ribbed wire, cold drawn wire,or galvanized (cold galvanized, hot galvanized) processing.
Technical parameter:
| Wire diameter | 3.0--6.0mm | Line wire form | Pre-cut wire |
| Line wire distance | 50--200mm(adjustable) | Weft wire form | Pre-cut wire |
| Cross wire distance | 25--200mm(adjustable) | Rated voltage | 440V 50HZ |
| Welding net width | 3000mm | Rated power | 7X160KVA |
| Welding speed | 45--60 times/min | Panel mesh Length | Max 6m |
| Welding spots | 61 | Dimension | 9.5m*1.7m*1.7m |
| Machine weight | 5.4T | Motor power | 5.5 KW |
Application:
1. It features beautiful, practical, convenient transportation and installation.
2. To adapt the terrain to the terrain during installation, the connection position with the pillar can be adjusted up and down with the fluctuation of the ground;
3. The four-channel bending reinforcement bars are installed in the crosswise of the airport guardrail network. While the overall cost is not increased much, the strength and beauty of the network surface are significantly increased, which is one of the most popular at home and abroad at present.
Main USES: closed airport, private area, military heavy ground, field fence, development zone isolation net.
