Name: | Wire Mesh Roll Welding Machine | Wire Diameter: | 2.5--6.0mm |
---|---|---|---|
Weight: | 3.7T | Dimension: | 2900*3200*1700mm |
Capacity: | 270--300m Per Hour | Color: | According To Your Requirement |
High Light: | wire mesh roll welding machine,steel wire mesh machine |

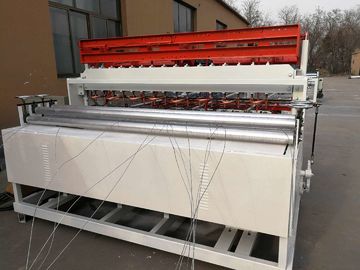

PLC Control Steel Grid Welding Equipment For Construction Mesh
Machine introduction;
1.The machine adopts Panasonic PLC and Weinview touch screen, easy to operate.
2.Pure red copper (upper) and chromised bronze (lower), durable.
3.The cross wires feeder is controlled by new type step motor and SMC (Japan) air cylinder.
4.Helical gear reducer connect the principal axis directly, stable, suitable for high speed welding.
5.Casting water-cooling welding transformers, high efficiency. The welding degree is adjusted by PLC.
6.Panasonic (Japan) servo motor+planetary reducer and SMC (Japan) air cylinders for pulling mesh.
7.The cable carrier is Igus brand, imported from Germany, not easily hang down.
8. Material:Suitable for low carbon iron wire, deformed bar, round bar black annealed wire or galvanized (cold galvanized, hot galvanized) processing.
Technicla parameter:
Model | MLG-WH-2500 | Wire diameter | 2.5-6mm |
Longitude wire space | 50-300mm | Cross wire space | Min.50mm |
Mesh width | Max.2.5m | Welding speed | 45-60 times/min |
Longitude wire feeding | From wire coils | Cross wire feeding | Pre-straightened&pre-cut |
Welding electrodes | 48pcs | Transformers | 160kva*6pcs |
Machine size | 2.9*3.2*1.7m | Weight | 3700kg |
