Product Details:
Payment & Shipping Terms:
|
| Product Name: | Gabion Wire Mesh Machine | Width Of Mesh: | Max 4500mm |
|---|---|---|---|
| Mesh Size: | 60*80mm 80*100mm 100*120mm 120*150mm | Motor: | 15KW |
| Wire Diameter: | Max 3.5mm | Application: | Used To Make Gabion Mesh To Control Flood |
| High Light: | gabion wire mesh machine,gabion box machine |
||

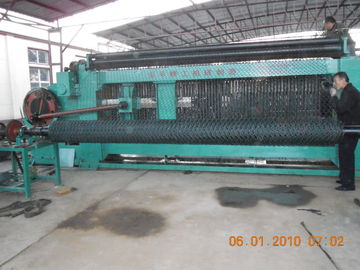

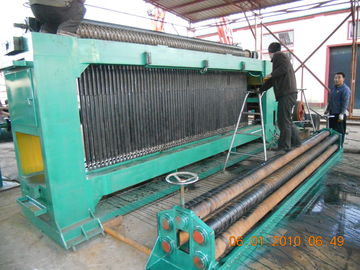

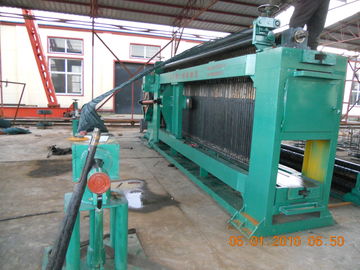

The series gabion mesh machines have been designed to make gabion mesh of various widths and mesh sizes. The possible coatings are heavily galvanized and zinc. For high corrosion resistance, zinc and PVC, galfan coated wire is available.We can manufacture gabion machine according to customer's request.
1. New type double rack drive gabion knitting machine
2. High efficiency: theoretic output=4.25m/min
3. PLC control system touch screen(Option)
4. Infrared ray safety(Option)
5. Automatic stop system (Option)
6. Automatic oil system
7. The knitting machine is satisfied with normal wire netting machine's requipment, and also can meet weaving large diameter hexagonal mesh's demand.
8. The design is innovation in China, it can weave the wire 4.0mm easily and speed as normal wire diameter.
Technical parameter:
| Product specification (mm) |
Largest width of shell fabric (mm) |
Largest wire diameter (mm) |
Motor power (kw) |
Weaving speed (m/hour) |
Boundary dimension (mm) |
Weight (T) |
| 60*80 | 2400 | 3.5 | 15 | 165 | 5200*1400*2400 | 13.5 |
| 3300 | 3.5 | 18 | 6200*1400*2400 | 15 | ||
| 4500 | 4 | 30 | 7200*1400*2400 | 15.5 | ||
| 80*100 | 2400 | 3.5 | 15 | 200 | 5200*1400*2400 | 13.5 |
| 3300 | 3.5 | 18 | 6200*1400*2400 | 15 | ||
| 4500 | 4 | 30 | 7200*1400*2400 | 15.5 | ||
| 100*120 | 2400 | 3.5 | 15 | 220 | 5200*1400*2400 | 13.5 |
| 3300 | 3.5 | 18 | 6200*1400*2400 | 15 | ||
| 4500 | 4 | 30 | 7200*1400*2400 | 15.5 | ||
| 120*150 | 2400 | 3.5 | 15 | 230 | 5200*1400*2400 | 13.5 |
| 3300 | 3.5 | 18 | 6200*1400*2400 | 15 | ||
| 4500 | 4 | 30 | 7200*1400*2400 | 15.5 | ||
| Note: Special specifications can be made according to requirement of clients. | ||||||
Applications;
This structure can be used in slope support, foundation pit supporting, mountain rockface net-suspended spray, slope vegetative guarding block (green), railway highway isolation, it can also make luggage, gauze pad, used in rivers and DAMS and seawall scour protection and prevention of the reservoir, river closure with a box.
