Product Details:
Payment & Shipping Terms:
|
| Welding Speed: | 45 Times Per Min | Wire Diameter: | 2.5--6.0mm |
|---|---|---|---|
| Motor: | 4KW | Mesh Size: | 50*50--200*200mm |
| Control System: | PLC | Welding Transformer: | 160KVA |
| High Light: | wire mesh roll welding machine,wire mesh fencing machine |
||

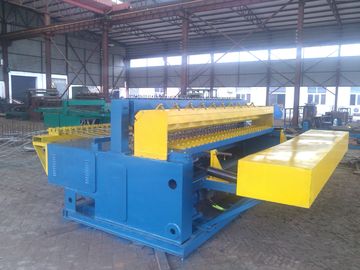

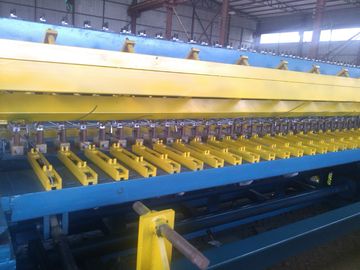

Automatic Steel Grid Welding Machine Used In Construction Mesh
Wire mesh welding machine description:
1. The machine adopts Panasonic PLC and Weinview touch screen, easy to operate.
2. Pure red copper (upper) and chromised bronze (lower), durable.
3. The cross wires feeder is controlled by new type step motor and SMC (Japan) air cylinder.
4. Helical gear reducer connect the principal axis directly, stable, suitable for high speed welding.
5. Casting water-cooling welding transformers, high efficiency. The welding degree is adjusted by PLC.
6. Panasonic (Japan) servo motor+planetary reducer and SMC (Japan) air cylinders for pulling mesh.
7. The cable carrier is Igus brand, imported from Germany, not easily hang down.
Technical parameter:
| Model | MLG-WH-2500BN | Wire diameter | 2.5-6mm |
| Longitude wire space | 50-300mm | Cross wire space | Min.50mm |
| Mesh width | Max.2.5m | Welding speed | 45-60 times/min |
| Longitude wire feeding | From wire coils | Cross wire feeding | Pre-straightened&pre-cut |
| Welding electrodes | 48pcs | Transformers | 160kva*6pcs |
| Machine size | 2.9*3.2*1.7m | Weight | 4500kg |
Applications;
Strong welding, uniform mesh, flat surface, corrosion resistance, strong strength, strong protection.
It is used for construction materials of roof, tunnel, bridge construction, subgrade and construction site.
