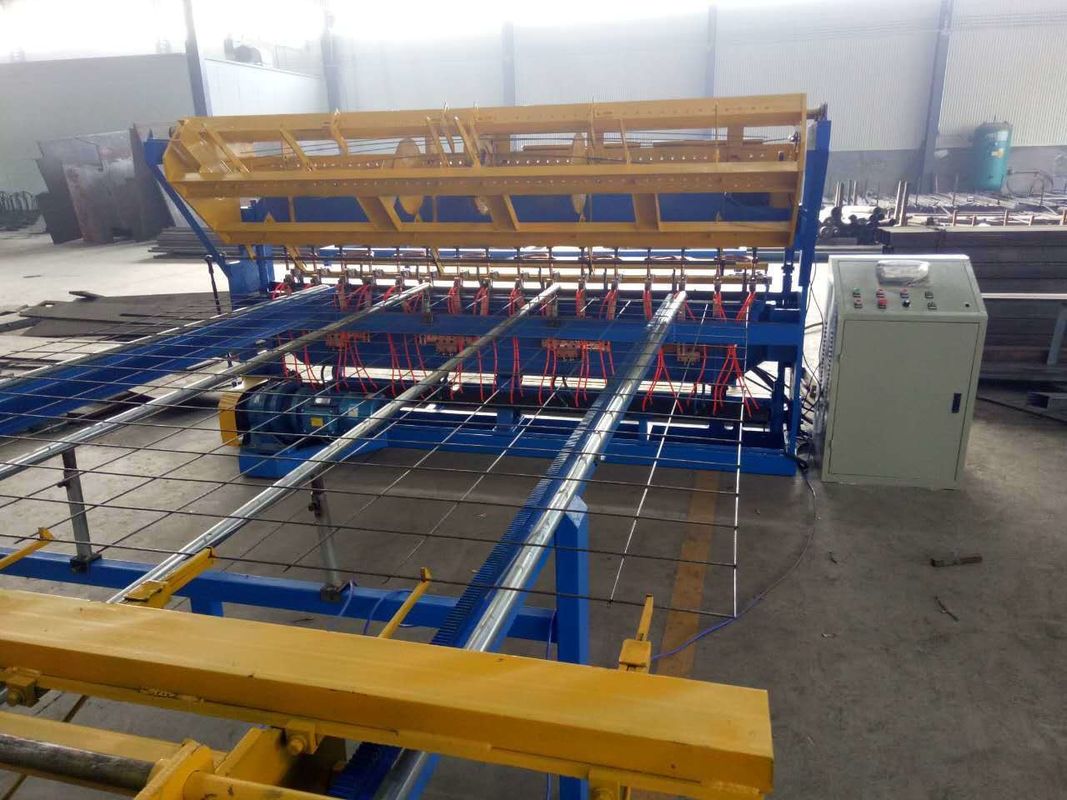

Servo Motor Welded Fence Mesh Panel Welding Equipment Wire diameter 3--6mm

Servo Motor Welded Fence Mesh Panel Welding Equipment Wire diameter 3--6mm

Servo Motor Welded Fence Mesh Panel Welding Equipment Wire diameter 3--6mm
Servo Motor Welded Fence Mesh Panel Welding Equipment Wire diameter 3--6mm Servo Motor Welded Fence Mesh Panel Welding Equipment Wire diameter 3--6mm

Large Image :  Servo Motor Welded Fence Mesh Panel Welding Equipment Wire diameter 3--6mm Get Best Price

Product Details:

Place of Origin: Hebei China
Brand Name: MLG
Certification: CE ISO9001
Model Number: MLG-WHJ-3000

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Main machine is covered by plastic film, the control cabinet and other parts put into wooden box. need 20 feet container.
Delivery Time: 30 days
Supply Ability: 5--6 sets per month
Detailed Product Description
Wire Diameter: 3--6mm Width Of Mesh: Max 3000mm
Mesh Size: 50*25--300*300 Mm (adjustable) Length Of Mesh: Max 6m
Welding Transformer: 125 KVA*8PCS Weight: 4.3T
High Light:

fence panel making machine

,

mesh panel welding machine

          Servo Motor Welded Fence Mesh Panel Welding Equipment Wire diameter 3--6mm



Product descroption



Linear wire feeding

1. A device for feeding a linear wire.

2. Transformer: 8 * 125KVA (Water-cooling)

3. Welding time and welding current are regulated separately. It is easy to establish when the diameter of the wire is changed.



Cross wire feed

1. Transverse wires, pre-straightened and cut

2. The cross-wires controlled by the stepper motor are fed automatically.



Welding part

1. Special copper with a long service life and high conductivity

2. Welding electrodes: 60 pcs.

3. The pitch of the wire line is 50-300 mm



Stretching the grid

1. The pitch of the transverse wire is set via the PLC

2. The cell size may vary from 50 mm to 300 mm.

3. The maximum length of the grid is 6 m.



Technical parameter:



Wire diameter 3.0--6.0mm Line wire form Pre-cut wire
Line wire distance 50--300mm(adjustable) Weft wire form Pre-cut wire
Cross wire distance 50--300mm(adjustable) Rated voltage 380V 50HZ
Welding net width 3000mm Welding transformer 125KVAx8PCS
Welding speed 45--60 times/min Panel mesh Length Max 6m
Welding spots 60 Overall dimension 9.5m*4.3m*2.1m(L*W*H)
Machine weight 4.3T Motor power 5.5 KW
Workshop 16m*6m*4m(L*W*H) Power supply at least 80KVA



Servo Motor Welded Fence Mesh Panel Welding Equipment Wire diameter 3--6mm 0

Servo Motor Welded Fence Mesh Panel Welding Equipment Wire diameter 3--6mm 1



Wire straightening cutting machine



Servo Motor Welded Fence Mesh Panel Welding Equipment Wire diameter 3--6mm 2
