Product Details:
Payment & Shipping Terms:
|
| Brand: | MLG | Wire Diameter: | 5--12mm |
|---|---|---|---|
| Mesh Width: | Max 3000mm | Mesh Size: | 100*100--300*300mm(adjustable) |
| Control System: | PLC+ Touch Screen | Welding Times: | 40--60 Times Per Min |
| High Light: | automatic steel bar cutting machine,rebar straightening cutting machine |
||

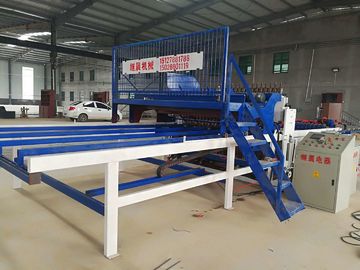

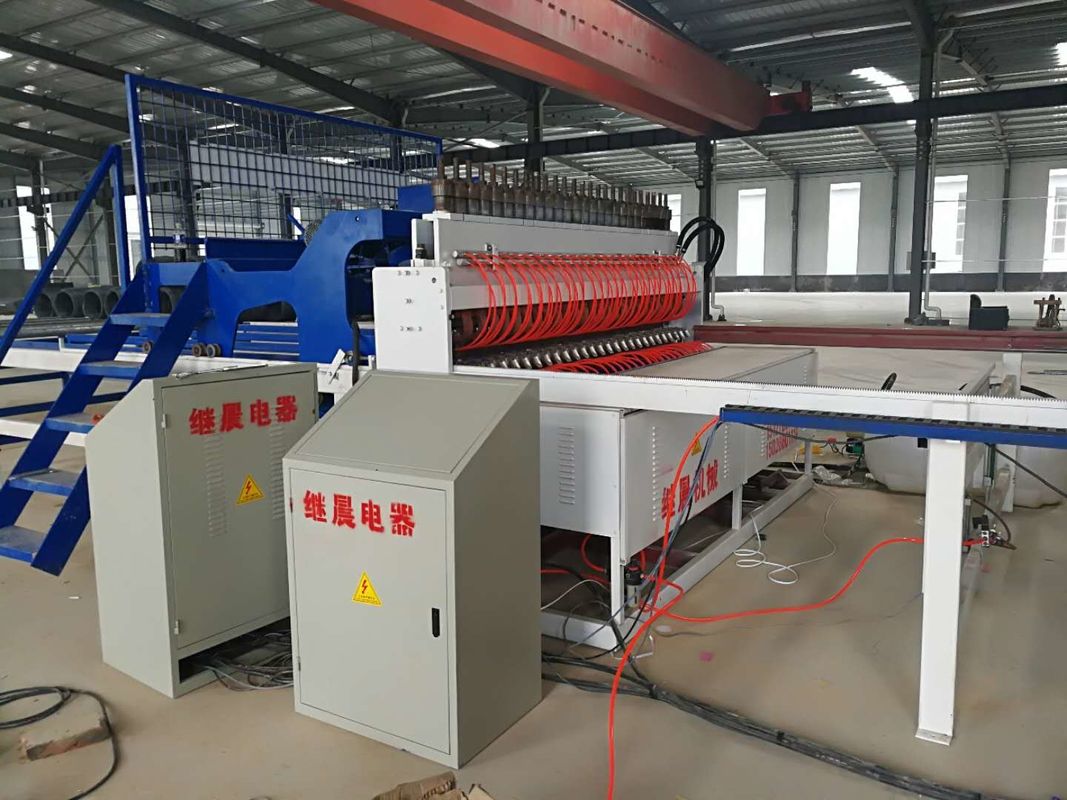

Steel Bar / Reinforcing Concrete Welded Wire Mesh Welding Equipment (2.5M Width)
Product description:
1. The machine is used for wire diameter 5-12mm, it is an automatic equipment that desiged and manufactured by ourselves. Both the line wire and cross wire are feed from pre-cut wire, the controlling system adopts PLC control; the machine adopts servo motor to pull the mesh panel repeat.
2. The machine uses PLC touch screen control technique, we use Japan, Sony digital control system which can be input to touch screen control panel to adjust the mesh size, so it can weld different mesh size on the same mesh panel .to make sure the welding firm during a long working time, and prolong the service life.
3. Feeding and Welding System Cross wire feeding: Firstly, the coil wires are straighten and cut into fixed length by straightening cutting machine, which become weft wire. Then worker put the weft wires into wire hopper. Wire hopper under the control of air pump, the cross wires falling automatically one by one.
Line wire feeding: warp wires are the same to weft wires, firstly use straightening cutting machine to straighten and cut coil wire into fixed length. Then the line wires are sent by labor and fed automatically, when it welding and drawing, labors can prepare the wires, it increases production efficiency.
It can be used for producing high-level construction and bridge mesh, high-way reinforce mesh, construction reinforce mesh, floor pouring mesh, airport reinforce mesh and so on.
Suitable materials: Galvanized wire, stainless steel wire, iron wire deformed bar and so on.
Technical parameter:
| Items | DC-12MA-50-1200 | DC-12MA50-1600 | DC-12MA50-2500 |
| wire diameter | 5-12mm | 5-12mm | 5-12mm |
| line wire space | 100-300mm | 100-300mm | 100-300mm |
| cross wire space | 50-300mm | 50-300mm | 50-300mm |
| wire forms | pre-cut wires | pre-cut wires | pre-cut wires |
| mesh width | 1200mm | 1600mm | 2500mm |
| number of electrodes | 12 (customzied) | 16(customized) | 25(customized) |
| welding speed | 40-60times/min | 40-60times/min | 40-60times/min |
| Cooling system | Water cooling transformer | Water cooling transformer | Water cooling transformer |
| Controlling system | PLC touch screen | PLC touch screen | PLC touch screen |
