Product Details:
Payment & Shipping Terms:
|
| Power Supply: | At Least 80KW | Capacity: | 270--300 M Per Hour |
|---|---|---|---|
| Material: | Low Carbon Steel Wire, Galvanized Wire, Stainless Steel Wire, Ribbed Wire | Welding Transformer: | 125KVA |
| Weight: | 3.2T | Dimension: | 2.3m*1.8m*1.5m |
| High Light: | chicken mesh making machine,automatic wire mesh machine |
||

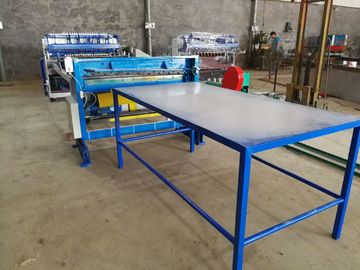

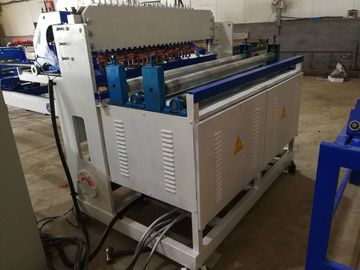

Welding Transformer 125KVA Welded Mesh Panel Machine Wire diameter 2.5--5.5mm
Product description
1.The control system adopts synchronous CNC technology, Panasonic PLC program and HMI. It is easy and convenient to operate with the touching screen.
2. Adjustable distance of the line wire that allows different opening size between the line wire distance, when input the distance of cross wire to computer, any mesh opening can be reach.
3. This welded mesh panel machine equips typical and efficient transformer, which gearless adjusted, enlarging the welding range.
4. Mesh pulling system is controlled by panasonic servo motor.
5, Welding transformer:125KVA*3PCS (24welding electrodes) ——every 8 welding heads need a water cooling transformer.
6, Wire feeding method: The line wires from coil wire.The cross wires should be pre-straightened and pre-cut. The cross wire system is controlled by stepping motor. Sends weft wires one by one automatically.The welded mesh panel machine stop working when the cross wire used up in the hopper.
7. The welded mesh panel machine has a mesh cutting machine. The mahcine is used to cut the mesh panel length. When you input the length of mesh and mesh opening. The mesh cutting machine will cut the mesh panel according to your input date.
8, Material:Suitable for low carbon iron wire, black annealed wire or galvanized (cold galvanized, hot galvanized) processing.
Technical details:
| Wire diameter | 2.5--5.5mm | Line wire form | From coil |
| Vertical wire distance |
50--200 (adjustable) |
Weft wire form | Pre-cut wire |
| Horizontal wire distance |
50--200 (adjustable) |
Rated voltage | 380V 50HZ(customize) |
| Welding panel width | Max 1500mm | Transformer power | 125KVAx3PCS |
| Welding speed | 45--60 times/min | Panel Length | Max 6m |
| Welding electrodes | 24 | Dimension | 2.3m*1.8m*1.5m |
| Machine weight | 3.2T | Motor power | 4.0KW |
