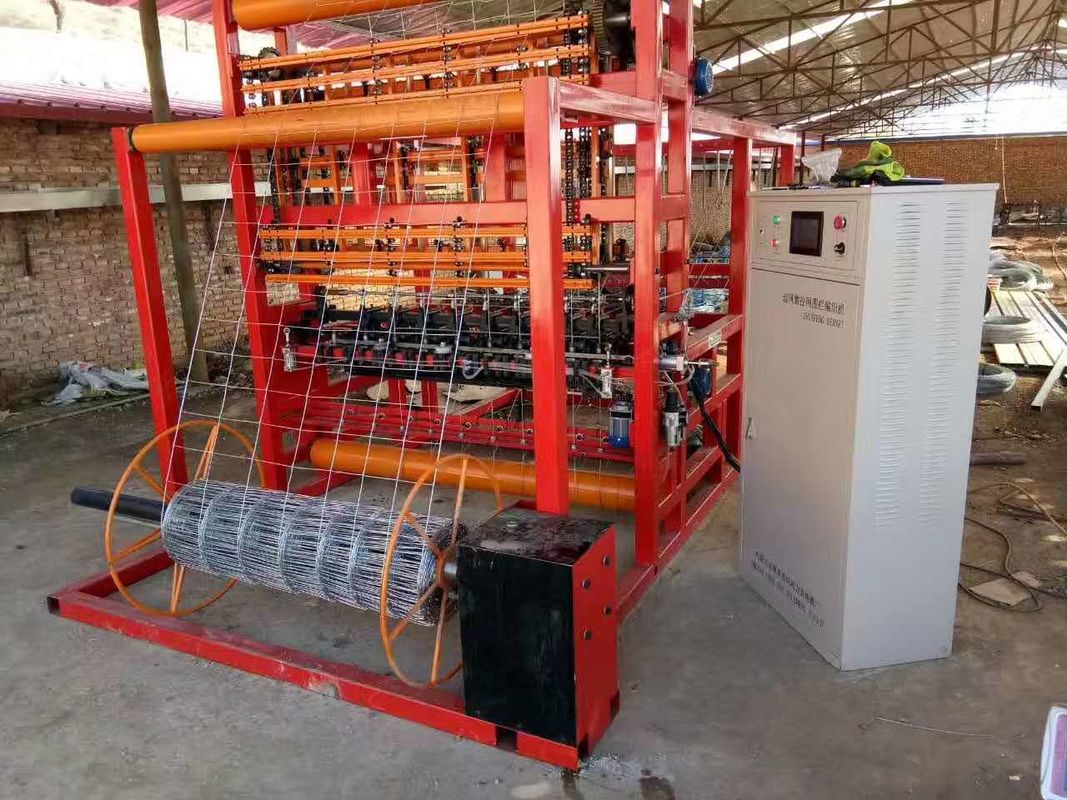

Zinc Aluminum Coating Fence Making Machine , Solid Lock Fixed Knot Deer Fence Machine

Zinc Aluminum Coating Fence Making Machine , Solid Lock Fixed Knot Deer Fence Machine

Zinc Aluminum Coating Fence Making Machine , Solid Lock Fixed Knot Deer Fence Machine
Zinc Aluminum Coating Fence Making Machine , Solid Lock Fixed Knot Deer Fence Machine

Large Image :  Zinc Aluminum Coating Fence Making Machine , Solid Lock Fixed Knot Deer Fence Machine Get Best Price

Product Details:

Place of Origin: Hebei China
Brand Name: MLG
Certification: CE
Model Number: MLG-2400

Payment & Shipping Terms:

Minimum Order Quantity: One set
Packaging Details: Covered by plastic film on the machine put into 20 feet container
Delivery Time: 30 days
Supply Ability: 3--4 sets per month
Detailed Product Description
Motor: 5.5KW Dimension: 4800x1960x2600
Weight: 4.2T Capacity: 150m Per Hour
Name: Fence Making Machine Voltage: 380V 440V
High Light:

field fence machine

,

fence making machine

14 Gauge Zinc Aluminum Coating Solid Lock Fixed Knot Deer Fence Machine





Main features:



Automatic deer fence machine is used to weave wrap-around fence. It can weave the wire diameter and weft wire together automatically. It is developed after many years our company has independent intellectual property rights, self-made. It uses sophisticated computer control, advanced production technology. With novelty, high degree of automation, operational safety and reliability, easy operation, long life and low prices. Product neat and beautiful, diverse specifications.



 Working principle



Knotted silk after straightening roll group through the bend, fold bend to tie wire bending into a v-shaped knotted silk, v-shaped wire through fall after being cut off wire agencies, to into the Seine is weft wire and wire has been cut off by interchange, warp wire winding motor running, the tie wire winding on the warp yarn, the V type two straight to the main shaft twist silk, silk weft wire winding machine;The v-shaped filament wound to the weft thread, and finished all the knot work, the cable motor and the coil network motor run, and the woven fence is rolled into a bundle.

The whole process is controlled by the numerical control operating system, including the size of the grid, the number of knotting threads and the warp threads, the tightness of the coil, the electronic eye monitoring switch and so on.

Deer mesh weaving machine includes a sensing component of feedback system, there is no silk sensing component feedback system including the warp and weft corresponding photoelectric switch and knotted silk metal induction switch, no wire sensor feedback system components such as lack of silk, detected signal feedback to the CNC system, CNC system the machine will automatically stop after processing, man-machine interface corresponding prompt the cause of the problem.

Deer mesh weaving machines and tight knot line automatic stop mechanism, when the knot parallel line too close, will touch the pressure switch, the feedback signal to the numerical control system, the machine will automatically stop running.



Technical parameter



Model MLG-1100 MLG-1300 MLG-1600 MLG-1800 MLG-2400
Distance of weft wire (mm) 100--250 100--250 100--250 100--250 100--250
Distance of line wire (mm) 70--200 70--200 70--200 70--200 70--200
Knotted wire diameter (mm) 1.6--2.5 1.6--2.5 1.6--2.5 1.6--2.5 1.6--2.5
Weaving wire diameter (mm) 1.6--3.5 1.6--3.5 1.6--3.5 1.6--3.5 1.6--3.5
Width of mesh (mm) 1100 1300 1600 1800 2400
Total Motor power 5.5KW 5.5KW 5.5KW 5.5KW 5.5KW
Dimension (mm) 4800x1960x2600 4800x2160x2600 4800x2460x2600 4800x2650x2600 4800x3260x2600
Weight (T) 3.0 3.2 3.5 3.7 4.2



Applications:



Novel structure, strong precision, smooth surface, uniform mesh, integrity, strong toughness, not together, prevent slippery, compressive characteristics such as widely used in: the zoo fence, construction site fences, captive poultry, slope greening, landscaping, with a net, wildlife park, grassland, pasture and other places of grazing in captivity, especially the application in the pasture fence project, for rotational grazing pastures, protection, can play an important role, can also be used for rare flowers, growing forest park isolation protection.





Zinc Aluminum Coating Fence Making Machine , Solid Lock Fixed Knot Deer Fence Machine 0

Zinc Aluminum Coating Fence Making Machine , Solid Lock Fixed Knot Deer Fence Machine 1
