Product Details:
Payment & Shipping Terms:
|
| Product Name: | Automatic Barbed Wire Making Machine | Barbed Wire Diameter: | 1.8--2.2mm |
|---|---|---|---|
| Thorn Distance: | 3inches,4inches,5inches.6inches. | Twist Number: | 2 Or 5 |
| The Capacity: | 90KG | Total Weight: | 1000KG |
| Main Machine Dimension: | 1950*950*1300mm | Take-twisting Part Dimension: | 1760*550*760mm |
| High Light: | barbed wire manufacturing machine,barbed wire fencing machine |
||
Double Twisted Barbed Wire Making Machine For Meadow Defense
1. High Speed
2. SGS ISO BV Approved Factory
3. One year warranty
4. Fast Delivery

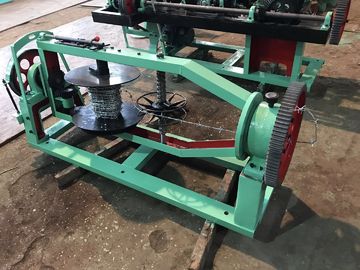

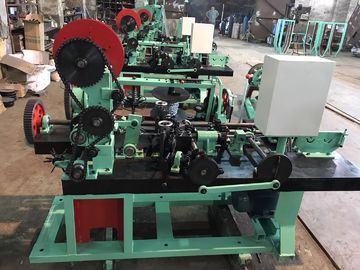

CY-A:Traditional Double Twisted Barbed Wire Machine
1. It is designed to produce double-strand barbed steel wire.
2. The machine is of horizontal design,consisting of two parts,assembled together at the middle.
3. It is safe and reliable in operation,capable of turning out high quality products with consistency.
| Items | Units | Parameters |
| Motor | KW | 2.2 |
| Main drive shaft speed | r/min | 402 |
| Unit wire diameter | mm | 2.0-3.0 |
| Barbed wire diameter | mm | 1.8-2.2 |
| Barbed distance | mm | 76(3inches) 102(4inches)127(5 inches) |
| Twist number | pcs | 2.5 |
| Theoretical yield | kg/h | 90 |
| Total weight | kg | 1000 |
| Dimension of main part | mm | 1950x950x1300 |
| Dimension of take-twisting part | mm | 1760x550x760 |

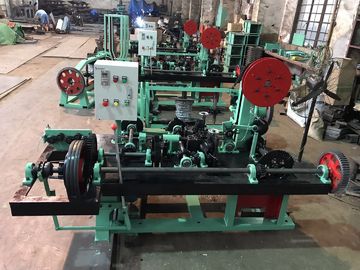

CY-B: Reverse Twist Barbed Wire Machine
1. Twistsis for Two-strand Wire with Two-way Twists can produce the barbed wire with two-way twists.
2. It could produce both single strand and double strands barbed wire.
3. This way is easy to operate and install as they will not entwist with each other.
| Items | Units | Parameters |
| Motor | KW | 2.2 |
| Main drive shaft speed | r/min | 355 |
| Unit wire diameter | mm | 2.2-3.0 |
| Barbed wire diameter | mm | 1.7-2.6 |
| Barbed distance | mm | 102 127 adjustable |
| Twist number | pcs | 4 |
| Output | kg/h | 40 |
| Total weight | kg | 1000 |
| Dimension | mm | 3100x1000x1150 |
Note: Special type can be made according to client's requirement.
