Product Details:
Payment & Shipping Terms:
|
| Name: | Hexagonal Wire Mesh Machine | Width Of Mesh: | Max 4000mm |
|---|---|---|---|
| Mesh Size: | 1/2inch 1inches 2inches 80*100mm,100*120mm | Color: | According To Your Requirement |
| Siutable Material: | Galvanized Wire.PVC Coated Wire. | Application: | Used In River Protection |
| High Light: | chicken wire mesh machine,wire mesh weaving machine |
||
Full Automatic Hexagonal Wire Mesh Making Machine / Automatic Gabion Mesh Machine
Our factory have three types hexagonal mesh machine.
1. Gabion mesh machine (Heavy type hexagonal mesh machine)
2. Normal twist hexagonal wire mesh machine (Light type)
3. Normal and reverse twisted hexagonal wire mesh machine (Light type)

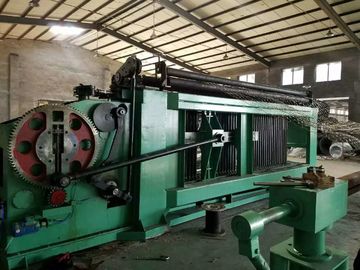

1. Gabion mesh machine
| Style | Mesh size | Width | Wire diamater | Spindle Speed | power of motor | Theoretic output |
| (mm) | (mm) | (mm) | (r/min) | (kw) | (m/h) | |
| LNWL23-60-2 | 60X80 | 2300 | 1.6-3 | 25 | 11 | 165 |
| LNWL23-80-2 | 80X100 | 1.6-3 | 195 | |||
| LNWL23-100-2 | 100X120 | 1.6-3.2 | 225 | |||
| LNWL23-120-2 | 120X150 | 1.6-3.5 | 20 | 255 | ||
| LNWL33-60-2 | 60X80 | 3300 | 1.6-2.8 | 25 | 15 | 165 |
| LNWL33-80-2 | 80X100 | 1.6-3 | 195 | |||
| LNWL33-100-2 | 100X120 | 1.6-3.2 | 225 | |||
| LNWL33-120-2 | 120X150 | 1.6-3.5 | 20 | 255 | ||
| LNWL43-60-2 | 60X80 | 4300 | 1.6-2.8 | 25 | 22 | 165 |
| LNWL43-80-2 | 80X100 | 1.6-3 | 195 | |||
| LNWL43-100-2 | 100X120 | 225 | ||||
| LNWL43-120-2 | 120X150 | 1.6-3.2 | 20 | 255 |

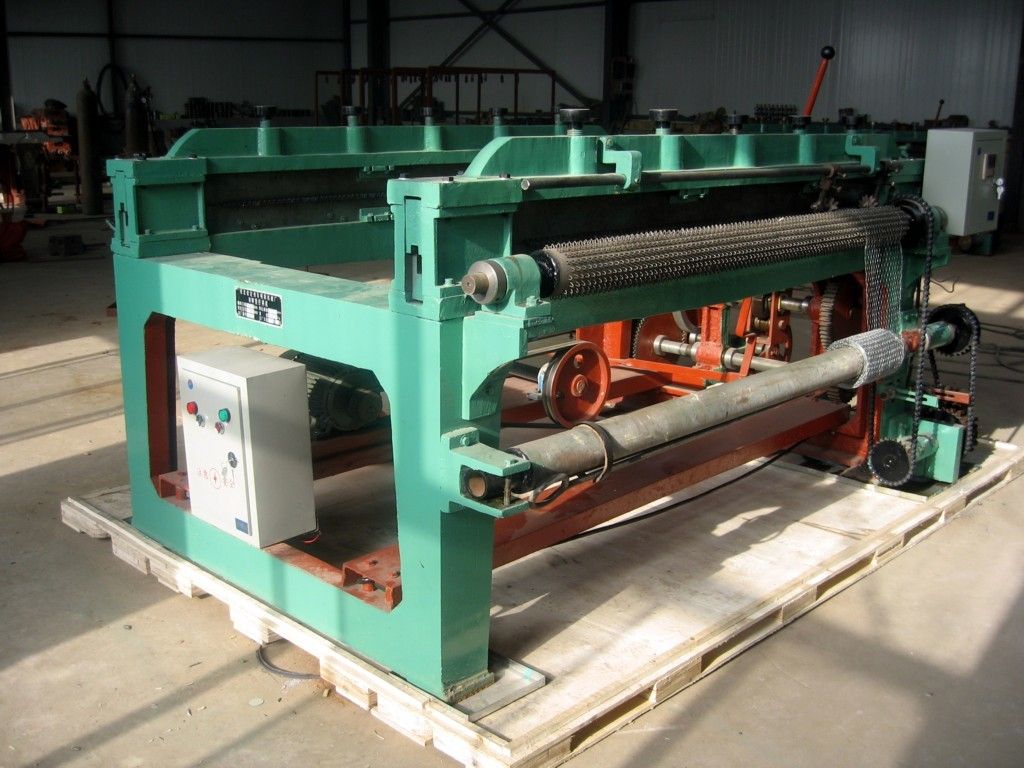

2. Normal twisted hexagonal wire mesh machine
| Name | Main Parameter | |
|
Normal Twisted Type
|
1. Hole size: 1/2'', 3/4'', 5/8'', 1'', 1.5'', 2.0'', 2.5'' 2. Mesh width: 1200mm-2000mm (can be customized) 3. Wire diameter : 1/2'' ---wire diameter ≤0.6mm 3/4'' ---wire diameter ≤0.8mm 5/8'' ---wire diameter ≤0.7mm 1'' ---wire diameter ≤0.9mm 1.5'' ---wire diameter ≤1.0mm 2.0'' ---wire diameter ≤1.6mm 2.5'' ---wire diameter ≤1.8mm |
3. Normal and reverse haxagonal wire mesh machine
| Name | Straighten and Reverse Twisted Haxagonal Wire Mesh Machine |
| Mesh size | 1/2" 3/4" 1" 2" |
| Wire diameter | 0.4--0.68mm |
| Mesh width | 2.6m(1.2m*2) |
| Motor power | 10.2KW |
| Dimension | 4800*1300*1600mm |
| Name | Straighten and Reverse Twisted Haxagonal Wire Mesh Machine |
| Mesh size | 1/2" 3/4" 1" 2" |
| Wire diameter | 0.4--0.68mm |
| Mesh width | 3m(1.5m*2 or 1m*3) |
| Motor power | 11.5KW |
| Dimension | 5200*1300*1600mm |
