Product Details:
Payment & Shipping Terms:
|
| Model: | JQ25--40 | Working Width Of Mesh: | Max 1500mm |
|---|---|---|---|
| Thickness Of Iron: | 0.2--2.0mm | Mesh Size: | Depends On The Cutter |
| Distance of feeding: | 0--2.5mm | Working speed: | 150 Times Per Min |
| Name: | High Speed Expanded Metal Machine | ||
| High Light: | expanded mesh making machine,expanded metal mesh machine |
||

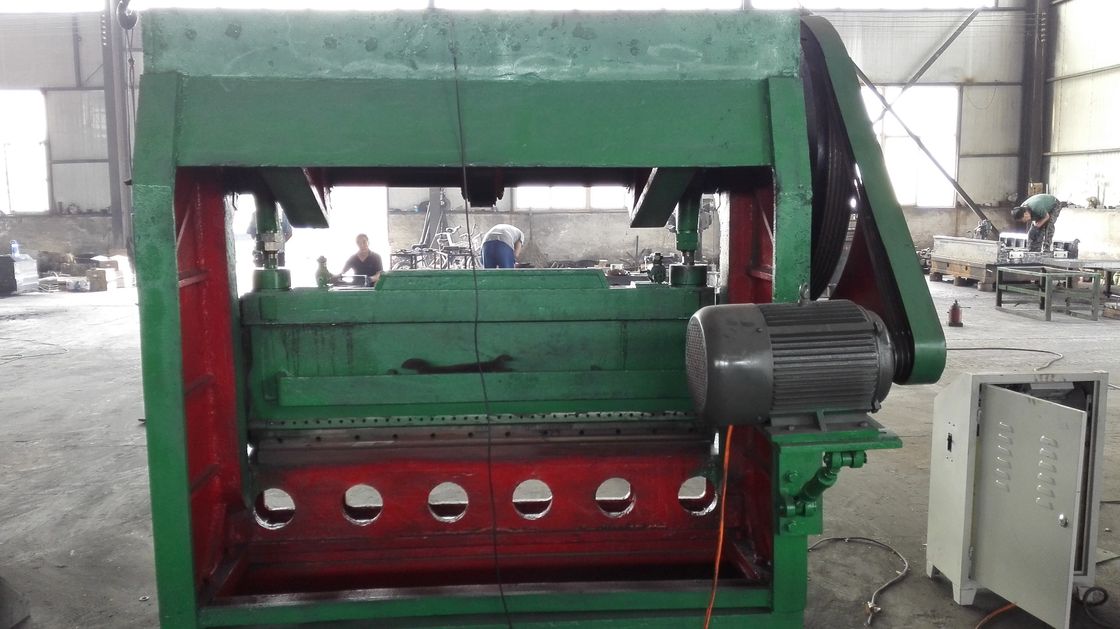

JQ25--40 Expanded Metal Mesh Punch Machine / Expanded Metal Mesh Making Machine
Introduction about machine
This machine adopts the mature technologies of the past as well as new technologies such as: full-automatic lubricating, NC stepping motor feeding, etc. It has good effect, controllability,stability and safety has been greatly increased. It has reasonable structure, elegant appearance. It is environmental production and energy saving.
It is suitable for the material as low carbon steel sheet, aluminium sheet, stainless steel sheet, aluminium magnesium alloysheet, copper sheet, Nickel sheet.
Technical parameter
| Model | JQ25--40 |
| Working width of mesh | Max 1500mm |
| Thickness of iron | 0.2--2.0mm |
| Distance of feeding | 0--2.5mm |
| Working speed | 150 times per min |
| Motor | 7.5KW |
| Weight | 4500KG |
| Dimension | 2400*1700*2200mm |
Applications:
1.Fence,panels & grids;
2.Walkways;
3.Protections &barres;
4.Industrials & fire stairs;
5.Metal walls;
6.Metal ceilings;
7.Facade screening;
Finished product
