Product Details:
Payment & Shipping Terms:
|
| Product Name: | Reinforcing Mesh Welding Machine | Width Of Mesh: | Max 2500mm |
|---|---|---|---|
| Mesh Size: | 100*100--300*300mm | Motor: | 15KW |
| Welding Speed: | 40--60 Times Per Min | Transformer: | 125KVA*12 |
| Wire Feeding: | Line Wire And Weft Wire Both Pre-cut | Power Supply: | 200KVA |
| High Light: | automatic steel bar cutting machine,rebar straightening cutting machine |
||

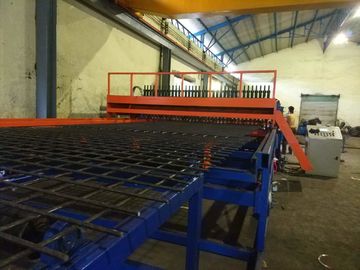

CNC Concrete Reinforcing Wire Mesh Welding Machine For Construction Bridge
Product introduction:
1. This machine adopts synchronous control technique. The center-control and welding time are composed of PLC program system.
2. The input front-panel has two forms, touch screen and keyboard that makes the machine more intelligent and reasonable and it could press at one time, welding repeatedly.
3. The hopper adopts the step motor; brake motor wheels; pulling the wire net is controlled by the step motor.
4. The line wire and the weft wire are pre-straightened and pre-cut.
5. The longitude wires can be adjustable and cross wire distance can be adjustable according to input the data what you want. The greatest advantage is that you can adjust the distance weft wire at random on the same piece of wire mesh sheet.
6. The finished product fence panel is smooth; the error of opposite angle line is small.
Technical parameter
| Model | MLG-FP-2500A | Welding speed | 40--60 times/min |
| Wire diameter | 5-12mm | Welding electrodes | 24pcs |
| Longitude wire space | 100-300mm | Longitude wire feeding | Pre-straightened&pre-cut |
| Cross wire space | 100-300mm | Cross wire feeding | Pre-straightened&pre-cut |
| Mesh width | Max.2.5m | Overall Size | 12*3.1*1.7m |
| Rated electrical power | 8125kva*12 pcs | Weight | 8700kg |
Note:The line wires and cross wires should be pre-straightened and pre-cut.
Application
